Blog Component

Different Types of Valves Used in Piping

What are Valves?

A valve is a huge device that can begin, stop, blend, control, or direct the stream or strain of a liquid in piping frameworks by altering the progression of liquid by means of the line. Any piping framework that transports fluids, fumes, slurries, gases, and blends of fluid and vaporous periods of various stream media should have valves.

By and large, the piping framework should include a few kinds of valves to control the progression of liquid through it. A valve's opening can be changed and controlled physically or with the assistance of an actuator. The actuator can be fueled by power, hydrodynamics, or pneumatics. The valves should be painstakingly picked on the grounds that they represent a sizeable part of the synthetic cycle industry's general spending.


In the piping industry, valves are installed to do any of the following assignments:


  • Guideline,

  • Non-return,

  • Particular reasons, and

  • Seclusion


The presentation of the interaction plant and its general movement will rely upon having an intensive understanding of the activity, maintenance, and valve change.


The most costly unbending piping parts in a plant are valves. They can make up as much as 20% to 30% of a cycle plant's general line thing costs. The size of a valve's closures that are connected to the piping framework determines its size.


Average valve types can be self-activated, physically worked, or furnished with actuators. Valves can be worked by electric, pneumatic, water-powered, or a combination of these actuators. According to the application, metals and non-metals are utilized to make valves.

Various Sorts of Valves Utilized in Piping:


Gate Valve- The door valve is made of a door-like circle that slides all over at the right points to the stream heading and is constrained by a screwed stem and handwheel. The circle turns down the stream when it is in the shut position where it leans against two appearances. gate valves are not fitting for throttling activities on the grounds that the endless door seats experience serious wear because of wire drawing (disintegration). They function admirably as stop (or isolating) valves when the circumstance calls for either a total stream or none by any stretch of the imagination. They have the advantage of having little stream obstruction and little strain misfortune when completely opened, as the liquid streams in a straight way.






Butterfly Valves- A butterfly valve is comprised of the valve body, circle, shaft, and any packing or bushings expected to help the shaft. The body, which is installed between pipe ribs, is frequently of the strong ring type. Normally, the plate is projected in one piece. This valve should be appropriately situated to abstain from binding the swing-through plate. The strain drop across the valve determines the thickness of the plate (throttling or shut position). Butterfly valves are made for pressures up to 13 800 kPa and temperatures up to 1100oC, and their sizes range from 25 to 3800 mm (1 to 152 inches). The level circle has a 90-degree rotational reach, allowing it to be moved from a totally open to a completely shut position. The valve has a manual activity switch incorporated into it. Since there might be huge strain differentials over a bigger size plate, a power actuator is expected to situate the circle. The butterfly valve manufacturer is regularly utilized in warm and hydroelectric power plants, the oil and gas processing and transportation areas, as well as water and sewage treatment offices. They are generally lightweight, easy to utilize, self-cleaning, and have a minimal tension drop across the valve when completely opened.


Needle Valves- It is feasible to control the stream definitively with needle valves. Its name comes from the seat's matching sharp-pointed plate. They are as often as possible utilized for compound feed control or continuous blowoff administrations. A lot of hand wheel development is expected to change the opening through the seat on the grounds that the stem strings are more modest than regular. These valves frequently have a more modest seat width than the line size.


Globe Valves- The globe valve's plan requires two bearing changes in the liquid stream that goes through it. The plate and the seat are situated lined up with the mainstream course, and a strung stem is utilized to draw the circle nearer or away from the seat. The globe valve's plan makes it ideal for throttling or regulating streams with minimal measure of wire drawing and seat disintegration. The globe valve has a lower cost of creation when contrasted with the door valve, which is another advantage. The gate valve has undeniably less stream obstruction than the globe valve, then again.

Aira Euro Automation is the leading valve manufacturer in India. We offer various types of industrial valves like ball valves, control valves, butterfly valves, globe valves, and many more.

What is an Industrial Gate Valve?

Modern valves are utilized for stream control in modern cycles at explicit areas in a channeling framework. Valves start, stop, choke, or redirect the interaction liquid stream. Valve application qualities are different, bringing about an expansive cluster of conceivable valve decisions. Valve styles and types have developed because of their presentation, security, viability, and life span.



Valve type by and large alludes to the means utilized to control liquid stream, explicitly the body style and hole plan. These valve qualities are utilized to decide if a valve type might be reasonable for your cycle application. The most well-known valve types incorporate gate and globe valves (alluded to as straight valves) and ball, attachment, and butterfly valves (alluded to as quarter-turn valves). This large number of sorts of valves have various varieties and customizations happening inside each kind.



The Gate Valve



Gate valves use a versatile wedge, frequently round or rectangular, that is situated to confine the cycle stream way. This wedge alluded to as the gate or circle, is associated with a valve stem that reaches out to the outside of the valve body. Direct movement of the stem will situate the gate inside the valve body to give a level of a hindrance to the cycle stream way. Completely embedding the gate into the media way will shut down the stream, while progressively pulling out the gate will build the opening through which liquid can pass and considers expanding stream rates. Seals are given along the planar surfaces where the gate contacts the valve body.



Aira Euro Automation is the leading valves manufacturer India. We offer various types of industrial valves like ball valves, butterfly valves, control valves, plug valves, and many more.



Gate Valve Benefits



  • At the point when completely open, these valves give almost no limitation to the liquid stream.

  • This valve type gives a straight-through section.

  • Gate valves can be utilized bi-directionally, with stream control accessible in the two headings.

  • Establishment space aspects along the stream way are insignificant.

  • Since the gated development is opposite the stream bearing, the energy expected to move the gate is by and large low, permitting more modest actuators.

  • The conclusion of gate valves is nearly delayed to different kinds of valves, decreasing the actual shock (pounding) in the funneling framework.

Extra Gate Valve Application Contemplations



  • Valve seals are presented to the liquid stream as the gate opens. The impacts of the cycle media speed and media destructiveness on the seal material might cause crumbling at an unsuitable speed, especially in choking applications.

  • Gate valve stems from and largely broaden considerably from the valve body, as they should oblige the mounting of any expected actuator and the whole scope of movement of the gate. A few establishments will be unable to give the required space to this game plan.

  • The slow speed at which gate valves open and close may not be reasonable for certain applications.

  • Gate valves are for the most part not suggested for choking the cycle stream, and involving them in control applications could bring about gate vibration. There is additionally worry about assisted seal wear because of the openness to higher cycle media speeds while choking.

Valve positioners: Make the right choice

Before the development of positioners, control valves were worked through a direct instrument air supply to the actuator stomach through an I-P converter. The other procedure was to supply air through the pneumatic regulator straightforwardly.



The essential reason for a valve positioner is to change the gaseous tension driving the actuator of the valve and position the valve stem accurately. They get order signals from the regulator, intensify the air signals and feed them to the valve actuator to move the valve shaft into the cycle set point.



Contingent upon the kind of development and standard of working, positioners are classified into fundamental 3 sorts



  • Pneumatic positioners

  • Electro-pneumatic positioners

  • Smart positioners



Pneumatic Positioners: A pneumatic positioner deals with the power balance standard. The information air signal is transferred and the resulting signal is produced and given to the actuator for shaft development. Pneumatic positioner amplifies the signs got from I-P and given to Actuator activity. The I/P converter chips away at the rule of flapper spout to flag yield pressure corresponding to yield current. A 4-20 Mama signal produces a yield air sign of 3-15 psi. This air sign of 3-15 psi is taken care of by the pneumatic positioner. Like in a round of back-and-forth, where the rope doesn't digress from its unique position when the two rival groups apply a similar measure of power, the place of the valve stem is likewise fixed at a set moment that the info and result signal match.



Electro-pneumatic Positioners: In Electro-pneumatic or E/P positioners, the capability of the I/P is incorporated into the positioner. As the I/P capability is inbuilt, the simple sign 4-20 Mama is straightforwardly sent to the positioner. Here, the power to open and close the spout is adjusted by valve stem position and by input current sign. Adjusted bar development makes the place of the spout change and required air signals for the pneumatic actuator get produced.



Smart Positioners: Brilliant Positioners are CPU-based advanced valve regulators. These positioners convert the current sign to constrain sign to work the valve according to the interaction necessities. Advanced positioners offer numerous extra highlights when contrasted with regular positioner types like pneumatic and electro-pneumatic. This is valuable for precise cycle control, conservative activity, and generally speaking, the strength of the valve, to forestall any separate support.



Aira Euro Automation is the leading electro-pneumatic positioner. We offer various types of industrial valves like ball valves, butterfly valves, control valves, plug valves, and many more.





As we can see surrounding us, advanced innovation is acquiring fame in each field, and quickly supplanting traditional techniques. A similar applies to positioners. Savvy positioners are furnished with numerous specialized highlights which are useful in activity at plants. Savvy positioners are likewise accessible in various kinds, contingent upon the development and working standard.



  • Contact type

  • Non-contact type

  • Straight sort

  • Turning type

  • Twofold acting

  • Single Acting



Advantages of utilizing brilliant positioners with advanced innovation



  • They are furnished with the most recent computer chip-based innovation

  • They convey high precision with low hysteresis

  • Less air utilization when contrasted with customary positioners brings about an enormous saving money on packed air age and supply

  • Accessible with various correspondence conventions like HART, FF, Profibus, and so forth

  • Auto valve alignment dispenses with the requirement for manual intercession

  • High-level symptomatic elements to assist with arranging preventive support

Gate Valve Vs. Butterfly Valve

Valves are integral pieces of piping frameworks for conveying fluids and gases and are accessible in different sizes and plans. Their only design is the control and guideline of these media safely.



Door valves and butterfly valves are two of the most famous kinds of industrial valves. These two have enormous contrasts in both of their underlying models, use, and working circumstances.



In this article, we are going to examine the distinctions between Gate Valves and butterfly valves. Allow us to begin by defining these two in the following area to find their disparities before we elaborate further on the subtleties.

Defining Gate and Butterfly Valves

What is a Gate Valve?



Gate Valve valves, otherwise called floodgate valves, cut off a medium in a pipeline by lifting a rectangular or round "door" from the medium's way. The bearing of the Gate Valve's development is opposite to that of the medium's stream.



Gate Valve valves are removed valves that are possibly utilized when minimum limitations and uniform linear streams are wanted. They can either be open or shut which doesn't permit the change of the medium stream. The medium release is regularly finished and no deposits are left in the lines.

Aira Euro Automation is the leading valve manufacturer in Morocco. We offer various types of industrial valves like ball valves, butterfly valves, control valves, globe valves, and many more.

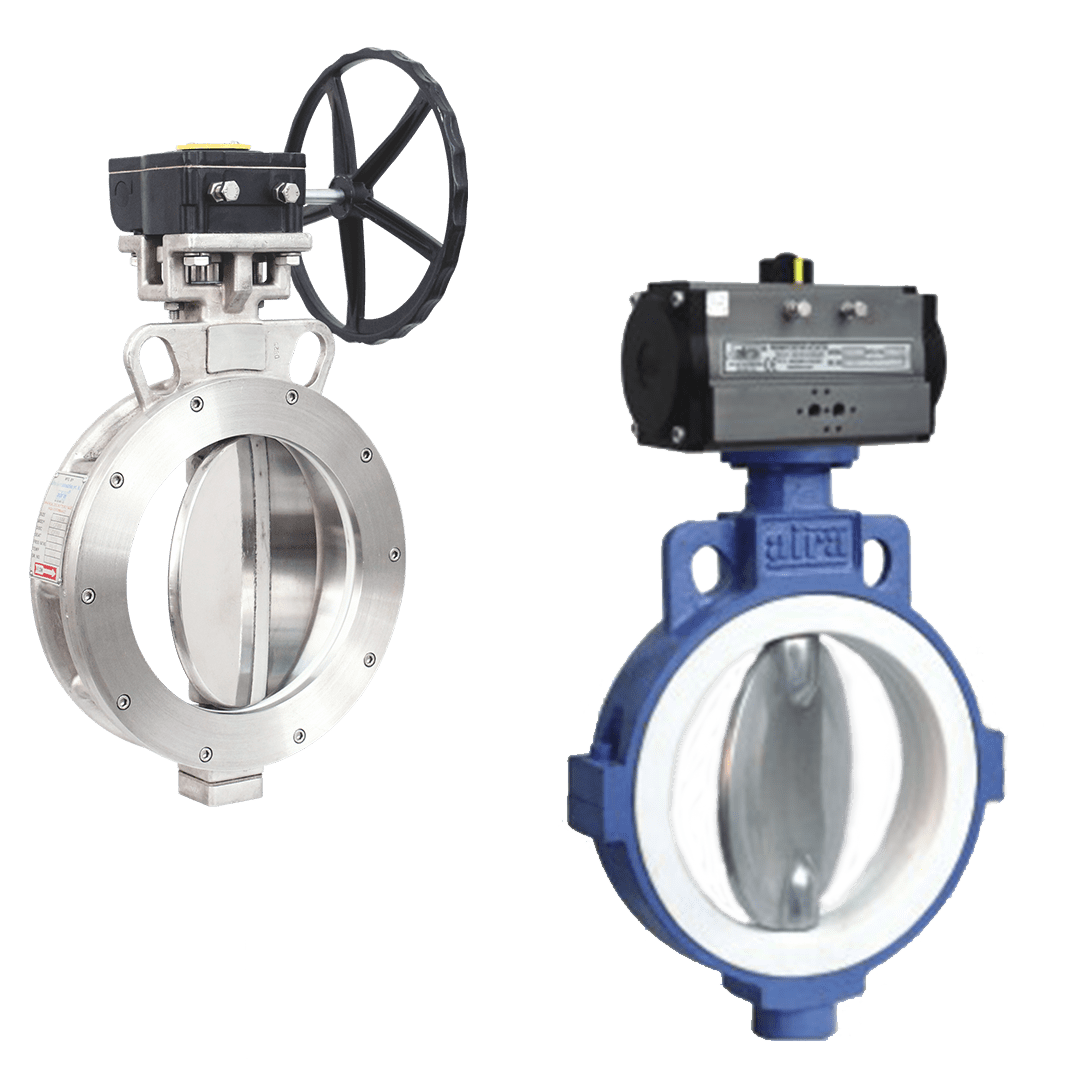

What is a Butterfly Valve?

Butterfly valves are otherwise called fold valves. They are made out of a decent plate on the valve's stem for closing and opening the valve. This circle pivots around the valve's stem to control the progression of the medium in the pipeline. The bearing of the circle's development is set up revolution just and requires a 90° pivot to open or completely close the valve.

Butterfly valves can either be utilized for regulating or isolating liquid streams and have some control over the stream without any problem. Notwithstanding, they leave lingering materials in the pipeline.

Contrasts Between Gate and Butterfly Valves

After the overall definitions of door and butterfly valves, you might have proactively seen the distinctions between the two. Most particularly their plan, how they work, and their suggested applications. Allow us to examine these further by tackling their disparities individually.

#1 Structural Design

Door valves utilize a "Gate Valve" or a wedge while butterfly valves utilize a rotating circle to permit or forestall liquid stream. Besides, door valves and butterfly valves have different body and plate plans as expressed underneath.

Door Valve

  • Body-Bonnet Designs

  • Catapulted hood door valve,

  • Screwed cap Gate Valve valve,

  • Pressure-seal cap, and

  • Welded-Bonnet door valve.



Circle Designs



  • Wedge door valve,

  • Twofold plate door valve, and

  • Conductor or Parallel slide door valve.



Butterfly Valve



  • Body Designs

  • Haul type butterfly valve,

  • Wafer-type butterfly valve,

  • Flanged butterfly valve, and

  • Butt-welded butterfly valve.

  • Circle Offset Designs

  • Zero offsets (concentric) butterfly valve,

  • Twofold offset (twofold offbeat) butterfly valve, and

  • Triple offset (triple offbeat) butterfly valve.

#2 Working Mechanism



Gate Valve



Gate Valve valves utilize a mobile Gate Valve or door to open and close the valve. This Gate Valve is brought down or raised using a precisely helped administrator which is regularly a strung screw. Since Gate Valve valves can either be in the completely open or completely shut express, the obstruction of the liquid stream when the valve is completely opened is more modest. This is because when the Gate Valve valve is completely open, the door is altogether out of the medium's way, providing an unhindered stream.



As a rule, Gate Valve valves go about as limitations to the medium stream and they change the medium's speed instead of its pace of stream. Additionally, the closing and opening rate of the door valve is delayed because of its high opening level.



Butterfly Valve



Butterfly valves have a place in the classification of quarter-turn valves and they comprise a rotating plate to control the medium stream. The circle is held at the focal point of the valve's body by a stem. Dissimilar to Gate Valve valves, butterfly valves have a short activity time since the administrator is just turned at 90° to permit or forestall liquid stream in the way.



A butterfly valve is generally worked using an actuator that turns the valve's circle either equal or opposite to the stream. The plate is lined up with the stream when the valve is in a completely open state and is opposite to it in any case. Likewise, the butterfly valve's thickness makes opposition which blocks the medium stream and makes the strain drop regardless of whether the valve is completely open.

#3 Applications

Gate Valve Applications

Gate Valve valves have great sealing exhibitions so they are frequently utilized for pipelines requiring severe sealing but don't require successive switching. They must be utilized in the completely open or completely shut state and not for regulating or throttling the medium stream rate because precise control can't be accomplished.



On the off chance that the valve is kept in the somewhat or intermediate open express, the valve's seat and the Gate Valve will dissolve seriously in only a brief time frame. The chattering wedge will likewise more often than not cause commotions and vibrations in the pipeline.



In addition, because the speed of the Gate Valve valve's opening and closing activity is slow, they are not great for pipelines that require crisis shutoffs. Yet, when tension along the line is thought of, Gate Valve valves can endure higher tensions contrasted with butterfly valves.



Finally, Gate Valve valves are generally utilized in enormous piping frameworks requiring uninterrupted bi-directional fluid and gas streams or in time-sensitive uni-directional media releases.



Types of Knife Valve Gate Valve

Knife Gate Valves (KGVs) were acquainted with the world to be utilized in the mash and paper industry in 1927. At the point when the market requested a minimal expense valve for mash stock tasks, the particular knife gate valve configuration was conceived. Knife gate valves have been utilized all around the world from that point forward, with a few varieties; the Push-Through Knife Gate was presented in the United States, while the Guided Shear Gate was planned in Switzerland. While we've embraced "knife gate" as a general term for every rendition of this valve, you may be shocked to discover that main the Guided-Shear Gate and its more excellent variation, can truly "cut" through media like a knife.



In this article, we will depict, and comprehend how the Knife Gate Valve functions, recognize with gate valve, and make sense of its assets and restrictions.



What is a knife Gate Valve?



The pneumatic knife gate valve is designed explicitly for on-off and disconnection tasks in frameworks with a high broken-up strong molecule. Knife gate valves are very helpful while managing slurry, rough, destructive, and thick media. The valves have a low-pressure drop in the completely vacant position, are easy to work, light in weight, and financially savvy.



Knife gate valves are planned to work in the cruelest circumstances, with a honed edge to slice through weighty fluids.



They are very useful in wastewater applications where erosion is a central issue. Notwithstanding the valve plan that is improved for slurry media, having a knife gate valve made out of resistance to corrosive tempered steel is invaluable because it is less helpless against erosion harm and consequently requires less regular upkeep or even substitutions.



Knife gate valves ought to continuously be utilized for applications that require a completely open or shut position and ought not to be utilized to manage stream except if explicitly intended for it. At the point when liquid is pushed against a somewhat shut gate, a vibration happens, steadily disintegrating the circle and seat. Besides, the knife gate valves are planned to open and close leisurely to safeguard against the impacts of the water hammer.



Knife Gate Valve characterization.



By Body Material.



Knife gate valves are developed from different materials. Project carbon steel, cast iron, pliable iron, gunmetal, nickel, amalgam prepares, hardened steel, and manufactured prepares are instances of normal materials utilized. The material utilized in gate valves is not entirely settled by the liquid help and the planned temperature.



A carbon Steel knife gate valve is a major area of strength for high hardness, elasticity, and effect esteem. It is much of the time utilized in modern plants for high temperature/pressure tasks.

Notwithstanding its significant expense, the treated steel knife gate valve has higher erosion opposition, heat obstruction, low-temperature obstruction, and mechanical strength.

Lined valves are innately thermally steady, artificially safe, and have great mechanical properties. On account of its unrivaled functionality, it is feasible to give valve wet parts fine covering unafraid of pinholes. It is additionally suggested for food handling since it is dry and requires no added substances or colors.



By Connection Type.



The end association of the valve is not set in stone by the prerequisite and reasonableness of the valve, for example, wafer type knife gate valve and haul type knife gate valve are utilized with less exorbitant valves, and flanged type end is the most widely recognized of various sorts, and a gasket is utilized for fixing.



Aira Euro Automation is the leading pneumatic knife gate valve manufacturers. We offer various types of industrial valves like ball valves, butterfly valves, control valves, plug valves, and many more.

Via Sealing strategy. Metal seat/Resilient seat



Preceding the presentation of the versatile situated knife gate valve, metal situated knife gate valves were regularly utilized. To guarantee a tight conclusion, the cone-shaped wedge development and rakish fixing gadgets of metal situated wedge require a dunk in the valve base. Sand and rocks are as yet caught in the drag. Despite how well the line is flushed during establishment or fix, the line framework won't ever be liberated from pollutants. Therefore, any metal wedge would lose its capacity to be drop-tight over the long haul.



A strongly situated knife gate valve has a straightforward valve base that permits sand and rocks to go uninhibitedly through the valve. On the off chance that pollutants go through the valve as it shuts, the elastic surface might close around the contaminations. As the valve closes, a great elastic compound contains debasements, which are flushed away when the valve is opened once more. The elastic surface would get back to its unique shape, guaranteeing a watertight seal.

By stem Structure. Rising stem/Non-rising stem



Knife gate valves are constrained by a strung valve stem that interfaces the actuator (hand or engine) to the gate. They are classified as rising or non-rising stems in light of which the end of the stem is strung.

Rising stems are joined to the gate and rise and lower together as the valve is worked, giving a visual sign of the valve's area. The nut-formed actuator pivots around the strung stem to lift or lower it.

The non-rising stem valves are strung at the gate end and are connected to and turned with the actuator. Since the movement of the gate is disguised inside the valve, they frequently accompany a pointer strung to the upper finish of the stem to show the area of the valve. Non-rising stems are utilized underground or where vertical space is restricted.

How does a knife valve function?



A knife gate valve is a part that utilizes an edge to slice through weighty fluid obstructing. These valves were made to work in a portion of the world's most destructive and rough circumstances.



Knife gate valves have become fundamental in applications including thick liquids, slurry, and different frameworks where impingement is an issue because of their very compelling plan attributes.



Ball Valve Actuator

What is a ball valve?

Ball valves are rotational or quarter-turn valves. Their closing film is an exhausting pivoting ball that is upheld on one or both top and base finishes. At the point when the valve is open, the drag in the ball is lined up with the progression of the pipeline, allowing the substance to go through. When shut (by turning the stem 90 degrees), the drag becomes opposite to the stream and stops it. These ball valves can have strong or metal seats, are normally bi-directional, and come in various association designs. The most well-known ball valve arrangement is flanged and strung.

Ball Valve Design

Traditional ball valves are planned principally for liquid segregation as they have unfortunate control attributes. The seat and body of a ball valve can be effectively dissolved on the off chance that the valve isn't completely shut or opened. Ball valves can likewise be intended for stream control. When intended for control they have a unique component in the plan of the drag of the closing layer. This bore is formed as a "V" and with this plan, they are designated "V-port" ball valves.

This plan takes into account linear and, surprisingly, equivalent rate stream qualities. At the point when the valve is in the shut position and opening begins, the little finish of the "V" opens initially allowing stable stream control during this stage. This plan is made of vigorous development to deal with higher liquid speeds which could ordinarily harm a standard valve. At the point when appropriately machined, the V-port ball valve can be utilized as a control valve, offering a tight shutoff.





Aira Euro Automation is the leading ball valve supplier in Nigeria. We offer various types of industrial valves like ball valves, butterfly valves, control valves, pressure reducing valves, and many more.

Ball Valve Applications

Ball valves are generally utilized in numerous industrial cycle applications. Regular ball valves are generally utilized for liquid detachment while quick operating times and tight shut-off are important or basic. They can likewise be utilized as "full port" without limitations when required. The ball valve is normally utilized in the oil and gas industry and is tracked down in numerous areas of manufacturing, synthetic capacity, and, surprisingly, private purposes.

Ball Valve Advantage

  • In little sizes, they can be conservative and low-maintenance.

  • Savvy contrasted with different sorts of valves.

  • Seat configuration gives magnificent sealing ability.

  • They open and close rapidly, ideal as crisis shut down valves (ESD)

  • Ball valves have the plan adaptability that takes into account numerous pathways, multiport valves

Ball Valve Disadvantage

  • Regular ball valves are not reasonable for stream control since throttling can make the seat of a ball valve dissolve rapidly.

  • For slurry applications or liquids with a high level of solids, particles slam into the ball valve surface and can stick to them. This can cause spillage, scraped spots, and different issues.

  • In enormous sizes, they have a perplexing plan, and maintenance can time-consume.

Solenoid Valve: How They Work

In a few homegrown, business, or modern settings where gases or fluids must be dispersed or blended, solenoid valves are utilized to guarantee the exactness and accuracy of all the control perspectives. To assist you with figuring out the kinds and working standards of solenoid valves, determination models, and in the middle, we've covered all you want to be aware of these electrically controlled valves. You ought to likewise examine the Linear Solenoid.



What are Solenoid Valves and How Do They Work?



For a typically shut valve in the resting position, the unclogger shuts a little opening or hole that permits the liquid to stream. When the electric flow goes through the loop, it's invigorated, and an electromagnetic field frames and applies power on the unclogger, opening the hole.



All things considered, solenoid valves must be simply used to control clean fluid and gases. This is because soil can without much of a stretch block the hole, causing execution issues.



Kinds of Solenoid Valves



Before we take a gander at the functioning standards of solenoids, we'll initially check out the two famous solenoid valve setups. These are the typically shut (NC) and the regularly open (NO) solenoid valves. Aira Euro Automation is the leading solenoid valve manufacturer in India.





For NC solenoid valves, it is shut when the curl is de-stimulated, i.e., when there's no electric flow moving through it. This implies that the hole is shut, and no medium can course through it. When the solenoid is controlled, the ongoing moves through the curl and empowers it. This makes an electromagnetic field with a resultant power that pushes the unclogger upwards to defeat the resistive spring force. This opens up the hole and permits the liquid media to move through the valve. NC valves are great for safeguarding applications that need the media to quit streaming assuming power is lost.



With NO solenoid valves, the valve is consistently open when the curl is de-stimulated. When an electric flow goes through the curl, an electromagnetic field is made, and the resultant power pushes the unclogger to the descending situation to beat the resistive spring force. Here, the seal will be situated right on the opening, shutting it and keeping any liquid from streaming through the valve. Frequently, a NO solenoid is best utilized for applications, which require the solenoid valve to be on or open for a more drawn-out period since it turns out to be more energy and cost-proficient.



Other than the regularly shut and typically open solenoids, there's additionally another sort called the hooking or bi-stable solenoid valve. Dissimilar to the past two, this type is turned here and there utilizing a prompt or transitory power source. The solenoid will remain in its new/current position given there's no power provided. This is achieved by supplanting a spring with extremely durable magnets.



Working Principles of Solenoid Valves



An immediate-acting solenoid can either be NO or NC, and its method of activity is straightforward. The greatest stream rate and working tension are straightforwardly relative to the opening size (distance across) and the solenoid valve's attractive power. With this working guideline, the solenoid doesn't need a base strain or any tension distinction. Direct-acting solenoids are along these lines utilized for little stream rates.



Solenoid valves in this classification utilize the strain contrast of the medium to aid the opening and shutting of the valve. The normal least tension expected for the valve to work is almost 0.5 bar.



In the middle of between the power source and gulf ports is an elastic layer called a stomach, which has a hole through which the liquid medium can without much of a stretch stream.



Over the film is a tension chamber that fills in as an enhancer. This chamber permits a more modest solenoid valve to control a bigger stream rate. They are utilized in modern or homegrown applications that require a higher stream rate and enough tension differential.



What are solenoid valves?

What is the motivation behind a solenoid valve?

The definition of a solenoid valve is an electro-mechanical valve that is generally utilized to control the progression of fluid or gas. There are different solenoid valve types, yet the main variations are either pilot worked or direct acting.

Where are solenoid valves utilized?

A solenoid valve is an electrically enacted valve, commonly used to control the stream or course of air or fluid in liquid power frameworks. Solenoid valves are utilized in both pneumatic and water-driven liquid power frameworks, and most frequently in one or the other poppet or spool arrangements.

What are solenoid valves and their sorts?

Solenoid valves convert electrical energy to mechanical energy, which causes an attractive reaction. The solenoid initiates when an electrical flow gets through the wire loop. ... There is a wide range of sorts of solenoid valves accessible, however direct-acting and pilot-worked valves are the two main classes. Aira Euro Automation is the leading solenoid valve supplier in Nigeria.



What are solenoid valves and their application?

Solenoid valves are basic and viable electrically worked valves to control fluid, gas, or steam. Solenoid valves have many purposes, from controlling packed air to working pneumatic gear, and controlling high-pressure oil to working water-driven hardware.

How Solenoid Valves Work - Basics actuator control valve working principle

What are the uses of solenoids?

Use of Solenoid

  • The main utilization of solenoid is as a switch for power. They are utilized in inductors, valves, receiving wires, and so on ...

  • It is utilized to electrically control a valve.

  • They can be utilized in a particular kind of entryway locking framework. ...

  • They are utilized in PC printers.

  • Solenoids are utilized in fuel injection gears in vehicles.

What are the sorts of solenoid valves?

5 Different Types of Solenoid Valves Explained

  • Direct Acting Valves. In an immediate-acting solenoid valve, a curl attractively opens the valve in direct activity, lifting the shaft and the seat of the valve without depending on external tension.

  • Pilot-Operated Valves. ...

  • Two-Way Valves. ...

  • Three-Way Valves. ...

  • Four-Way Valves.

What are the three sorts of solenoids?

Various Types of Solenoids

  • AC Laminated Solenoid.

  • DC C-Frame Solenoid.

  • DC D-Frame Solenoid.

  • Linear Solenoid.

  • Turning Solenoid.

What is the most widely recognized kind of solenoid?

Two-way valves

This is the most well-known sort of solenoid valve. Two-way valves have two ports, which are utilized then again to permit stream as well as close it off.

How would you characterize a solenoid valve?

Solenoid valves are partitioned into six sub-classifications from the distinctions in valve construction and materials and principle: direct-acting stomach structure, bit-by-bit direct-acting stomach structure, pilot stomach structure, direct-acting cylinder structure, Step-by-step direct-acting cylinder design, and pilot ...

How can I say whether my solenoid valve is working?

The speediest method for testing the solenoid valve is to apply a charge straightforwardly to it. There are two wires which cross straight over the valve as it lays in the clock that you will contact with a multimeter. This ought to send a charge onto the valve, and if it is functioning ordinarily, it will open.

What is the contrast between a solenoid valve and a control valve?

Control valves are for the most part installed over electric valves through a shut circle guideline to get increased security. Solenoid valves then again are worked electromagnetically in request to conquer spring strain and drive the spool activity of the rotating loop.

What occurs if a solenoid turns sour?

At the point when your starter solenoid turns sour, the return spring can get more vulnerable and more fragile, resulting in a switched activity from the engine's flywheel ring gear. This switched activity normally occurs as the drive gear neglects to reestablish with impeccable timing.

Are solenoids AC or DC?

Solenoids are the main parts utilized in solenoid valves to control the progression of fluids and gases. Solenoids are electromechanical gadgets that convert AC or DC electrical energy into linear movement.

How would you indicate a solenoid?

To determine the ideal size for your solenoid valve, you want to realize the stream rate, which permits you to determine the streaming factor (kV). The stream factor is a hypothetical worth that indicates the volume of water at room temperature that courses through the solenoid valve with a tension drop of 1 bar briefly.

What is the image for a solenoid?

The image for the solenoid or the strain worked valve has a similar number of squares as the valve has positioned. The right-hand square shows the valve in its non-impelled (rest) position, the left-hand square compares to a valve in its impelled (work) position.

What is a 5/2 way solenoid valve?

5/2 way is a five port, two position valve that will place a liquid or air into one finish of a twofold acting gadget as well as allowing the opposite end vent to debilitate. ... Regularly shut (N.C.) implies that when the solenoid valve isn't empowered the stockpile pressure port is cut off.

What is the principle of the solenoid?

The solenoid just deals with the principle of "electromagnetism". At the point when the ongoing move through the curl attractive field is created in it, on the off chance that you place a metal center inside the loop the attractive lines of motion are focused on the center which increases the induction of the loop when contrasted with the air center.

What are the two purposes of the solenoid?

A solenoid is an essential term for a loop of wire that we use as an electromagnet. We likewise allude to the gadget that can change over electrical energy into mechanical energy as a solenoid. ... Fundamental utilizations of the solenoids are to be utilized in switches for power. Like the starter in any vehicle.

Aira Euro Automation is the leading valve manufacturer in Nigeria. We offer various industrial valves like ball valves, butterfly valves, control valves, plug valves, and many more.

Three top tips on installing PRVs

The main role of introducing a pressure-reducing valve (PRV) is to guarantee property holders' water frameworks are remained careful, steady, and safeguarded from expensive healing work. It's a well-being highlight inside all pipes and warming frameworks that prevents a lot of pressure from harming your lines, fitting,s, and applications while limiting injury. Not just that, PRVs have a significant impact on the present expanding need to preserve water. In this blog, we see three top tips on introducing PRVs.

1. Size matters

Picking the right size of PRV is vital to guarantee the valve can perform at its ideal valve execution. The Theestimationg of PRVs can't be undervalued. If the stream rate is continually low and the PRV is larger than usual, the seat of the valve can dissolve over the long run. This implies that the PRV won't be 'drop tight' and would permit the downstream set pressure to 'crawl.' A PRV is considered 'drop tight' on the off chance that it can carry out two significant roles. One, that the set outlet pressure remains unimpacted by variances of bay pressure, and two, any pressure that ascents happen downstream of the valve.



In any case, on the off chance that the valve is small, it can turn out to be extremely loud every time the power source is opened and closed. This is because of the enormous volume of water just barely getting through the valve, which makes the innerspring vibrate under strain, thusly making a 'water hammer' impact on the pipework.



Stream rate is the main variable when concluding which size PRV to introduce. To figure out the right size, you should recognize the number of outlets that are required and what the consolidated greatest stream rate will be.



PRVs are measured by DN (Diameter Nominal). The accompanying diagram shows the greatest stream rates when you think about the ostensible size of the PRV and pipe:



The baseline length downstream of the PRV, before any elbow is fitted, should be something like multiple times the line work size. This is to safeguard against commotion and to guarantee a laminar stream.



2. PRV situation

PRVs can be utilized with any hot or cold-water framework. Introducing them to the main supply after the primary shut-off valve will precisely control the framework pressure. PRVs will likewise control the stream pace of the water going through the framework - this shields fittings and machines from encountering victories of water at a quick rate at any outlet.



Introducing a PRV to the fundamental water source framework safeguards the home from the high-water pressure coming from the principal street supply. For instance, if various homes have their water switched off for some time, a tremendous measure of pressure can develop. Without a PRV, this could make outlets inside the home victory at an awkward pressure.



This is one more motivation behind why it's a great practice to pick a PRV that is drop-tight. It will keep up with framework pressure under no-stream conditions, regardless of whether the inventory to the PRV has fundamentally expanded because of a drawn-out time of dormancy.



3. Check, then, at that point, check once more

Regularly introduced preceding a water meter on the section to the house, PRVs should be set in a position where they can be handily tried and kept up with if necessary. While introducing another PRV to a framework, it should be cleaned and flushed as illustrated in the Water Regulations 1999, to guarantee defilement of the main supply doesn't happen. The best practice is to ensure the valve is cleaned consistently, taking out any framework trash that might have developed.



Most valves incorporate an essential sifter that forestalls garbage influencing the valve's capability and can be eliminated, cleaned, and de-scaled if vital.



You ought to continuously guarantee a measure is utilized while dispatching the valve. This ensures the valve pressure is set precisely, and to make sure that the power source pressure stays unaffected during ordinary working circumstances.



At the point when an outlet is opened, the pressure in the valve will gradually drop off as water streams out. When the tap is shut, the pressure ought to get back to its not unexpected 'set pressure'. It is suggested that installers take a look at the PRV 24 hours after establishment, to guarantee no drags in this set pressure happen.



The best practice is dependably checking the pressure once introduced. As the pressure works inside the valve, the tap will open until the pressure of the tank diminishes to arrive at the base set. After you close the tap the pressure ought to develop back, demonstrating the way that the framework can hold at the necessary pressure. It's prescribed to leave the PRV on a trial short-term, to ensure it's holding consistent.



It's anything but a lawful prerequisite to introducing a PRV, notwithstanding, it's to the greatest advantage of future-sealing plumbing and warming frameworks. This valve takes out water waste and harm, giving a maintainable answer for the current water framework.



Aira Euro Automation is the leading manufacturer and supplier of UPVC butterfly valves. We offer various industrial valves like ball valves, butterfly valves, control valves, pressure-reducing valves, and many more.

What is the lug type of butterfly valve?

This is a valve planned with lugs that have strings on the valve body ribs. A lug-type butterfly valve is associated with the line utilizing bolts. The bolts are embedded through the strung lugs. Lug butterfly valve producers utilize this plan so detaching one end without influencing the opposite end is simple. Lug-type butterfly valves work utilizing a handwheel or actuator. The activity of the valve depends on a quarter-turn of the handwheel or actuator to open or close the liquid stream as needs be. Lug-type butterfly valve makers plan these valves utilizing various materials on various parts of the valves. The material used to make the valve figures out where the valve can be utilized as well as the working temperature. A portion of the lug-type butterfly valves is intended to permit bi-directional liquid stream while others permit liquid stream in one heading as it were.



Parts of a lug-type butterfly valve



Body



This is the piece of a lug-type butterfly valve that is utilized to keep any remaining parts intact. The body is made of metallic materials to make it exceptionally impressive. A portion of areas of strength for the materials used to cause the body to incorporate titanium compound, treated steel, metal, and carbon steel among others. The body is planned with lugs that have openings to hold the bolts used to associate the valve and line together.



Actuator/handwheel



This alludes to the part used to give the force expected to turn the valve to begin and stop the liquid stream. The actuator is utilized where the valve is programmed or self-loader while the handwheel or switch is utilized in manual lug-type butterfly valves. The handwheel is where the valve administrator applies force to open or close the valve.



Stem



This is the part of a lug-type butterfly valve that interfaces the handwheel/actuator to the valve plate. The stem communicates force from the handwheel to the plate. This force assists with turning the circle 90o degrees to open or close the liquid stream.



Circle



This is the piece of a lug-type butterfly valve that is utilized to begin and the top liquid stream. The plate is associated with the handwheel/actuator through the valve stem.



Seat



This is the part of a lug-type butterfly valve that assists with forestalling liquid spillage when the valve is shut. The seat gives the surface where the valve plate rests when the valve stops. The seat material can be delicate or metallic. Delicate seats are intended for use in low temperatures while metallic ones are utilized in high temperatures applications.



Gaskets



This is a part positioned between the valve and line mating surfaces to forestall liquid spillage. The gasket is held in its place after the valve and line are associated utilizing bolts.



How does a lug-type butterfly valve work?



A lug-type butterfly valve is a quarter-turn valve. This implies that the valve circle makes a quarter go point to open or close the liquid stream. To open a lug-type butterfly valve the handle is pivoted in the anticlockwise course for a quarter turn that is 90o degree point. The force applied on the handle is communicated to the valve circle through the valve stem. This force makes the valve circle turn and become lined up with the liquid stream bearing. This condition leaves the valve open permitting liquid to course through the valve. To stop the liquid stream, the handle is again pivoted for a quarter however the other way (clockwise heading). This revolution makes the circle go to become opposite to the liquid stream. The direction of the plate opposite to the liquid stream guarantees the liquid stream way is impeded thus no liquid can course through the valve. Lug-type butterfly valve producers plan this valve to such an extent that it very well may be utilized for both shut-off and choking applications. For choking liquid stream, the handle is turned somewhat permitting the circle to go to permit slight liquid stream.

Types of lug-type butterfly valves



Manual lug type butterfly valve



This is a manual lug-type butterfly valve that is worked physically utilizing a handwheel or hand switch. This type of valve is less expensive contrasted with the activated ones. Manual lug-type butterfly valve producers plan this valve with the end goal that it very well may be robotized later on assuming it becomes fundamental. The working of this valve requires the use of force on the handle by the valve administrator to begin or stop the liquid stream. This type of valve is reasonable for use in medium and little estimated valves since huge lug-type butterfly valves need a ton of force to open. Manual lug-type butterfly valves are flexible as they can work even where there is no power. Notwithstanding, this type of valve presents a risk to the valve administrator, particularly if the media being moved is perilous like combustible liquids, for example, oil and gas, or corrosives like acids. This is because any spillage when the valve administrator is chipping away at the valve can cause wounds or demise.



Plastic lug type butterfly valve



This is a lug-type butterfly valve that is made of plastic materials. Lug-type butterfly valve makers plan this valve for use in low-temperature applications that are under 60 C. This is because plastic materials do soften or get twisted by high temperatures. Be that as it may, these valves have brilliant protection from destructive media like acids. In that capacity, lug-type butterfly valve producers suggest the utilization of these valves where the temperature is low yet where the media is exceptionally destructive. Additionally, this valve can be utilized in non-destructive media like new water since they are less expensive contrasted to the metallic ones. One more great property of the plastic lug-type butterfly valve is that it is light in weight because of the low thickness of plastic materials.



View older posts »

Search

Comments

There are currently no blog comments.
